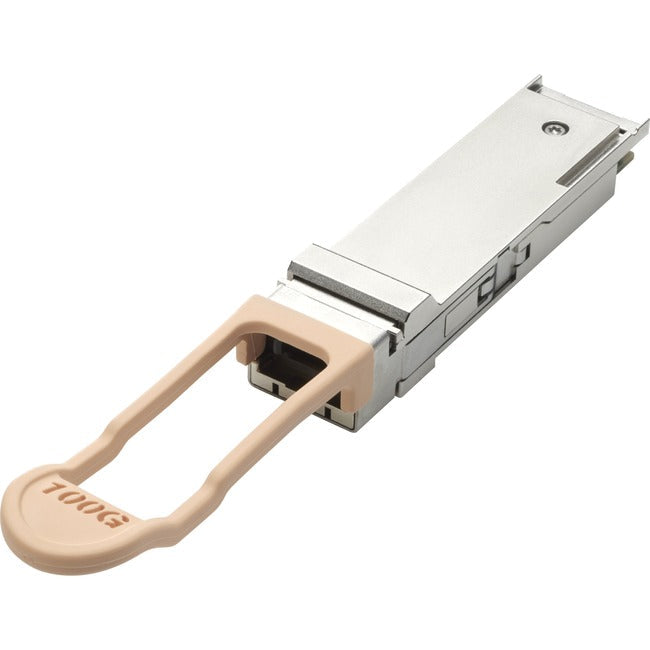

100Gb QSFP28 MPO SR4 100M Optical Transceiver, Pl=Si - High-Speed Data Center & Cloud Networking Solution

What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed.

With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.

Features

The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.

MPO connector for plugging in multi-mode fiber cables.

Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.

Bit-error Rate (BER) lower than 10-15.

3.3 V power supply.

• With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity


• Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity


• With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable

Product Type: QSFP28
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: HPE
Manufacturer: Hewlett Packard Enterprise
Product Name: 100Gb QSFP28 MPO SR4 100m Transceiver
Manufacturer Part Number: 845966-B21
Manufacturer Website Address: http://www.hpe.com
Weight (Approximate): 0.08 lb
