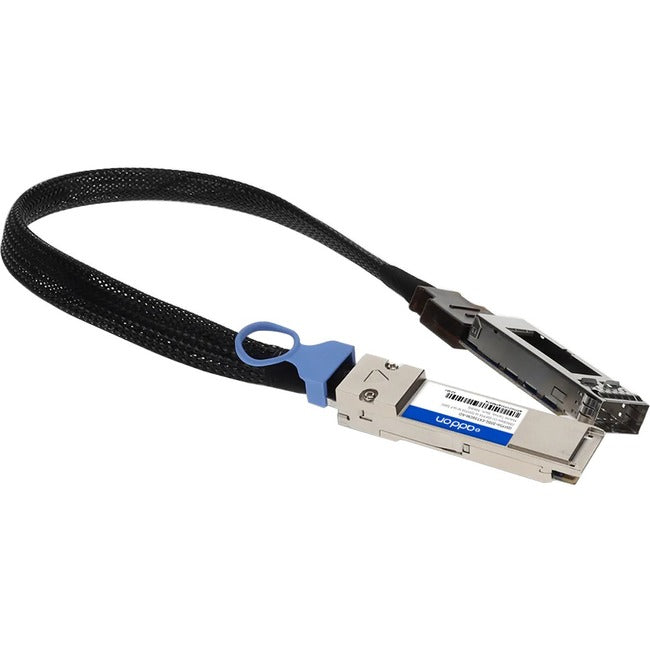

200G QSFP56 DAC Cable 36cm (0.36m) Passive Twinax Direct Attach Copper Cable 30AWG - High-Speed Data Center & Server Connectivity for Cloud Computing & Network Switches

AddOn Twinaxial Network Cable

This is an MSA compliant 200GBase-CU QSFP56 to QSFP56 direct attach extension cable that operates over passive copper with a maximum reach of 22cm (0.6ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

• Low EMI radiation


• Insertion Loss < [email protected]/channel within 50cm


• Oil resistance, dust-proof and anti-corrosion


• 100 ohm differential impedance system


• Low Near-End Crosstalk (NEXT)


• Compliant with QSFP-MSA


• Compliant with SFF-8436 and SFF-8665


• IEEE 802.3cd Compliant


• Compliant with Infiniband HDR


• Operating Temperature: 0°C to 70°C

Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Taa Compliant: Yes
Product Material: Copper
Country Of Origin: United States
Brand Name: AddOn
Manufacturer: AddOn
Product Name: Twinaxial Network Cable
Manufacturer Part Number: QSFP56-200G-EXT36CM-AO
Manufacturer Website Address: http://www.addoncomputer.com
Packaged Quantity: 1
Limited Warranty: Lifetime
